5" Auxiliary Modular Ventilation, Duct Out. Must be paired with a Primary Modular Cooktop - CI365DTTB1, CI304DTTB1, CI244DTTB1, CI152DTTB1 Black

Model CD5DB1
Become a member to see your savings.
White-Glove Service
Professional delivery and installation
Wishlist
Overview
With powerful extraction, this ventilation module fits seamlessly into your countertop. Designed to pair with a Primary Modular Induction Cooktop for the ultimate culinary solution.
Partner
Fisher & Paykel
Model
CD5DB1
Category
Appliances · Parts accessories
Finish
Black
Collection
Eleven
Features
Modular Design Freedom
Modular Design Freedom

Enhance your cooking space with downdraft ventilation. These modules can be discreetly positioned alongside your primary cooktop and auxiliary modules, ensuring a fresh environment regardless of your chosen cooking method. Tailor your setup to reflect the way you live, cook, and entertain.

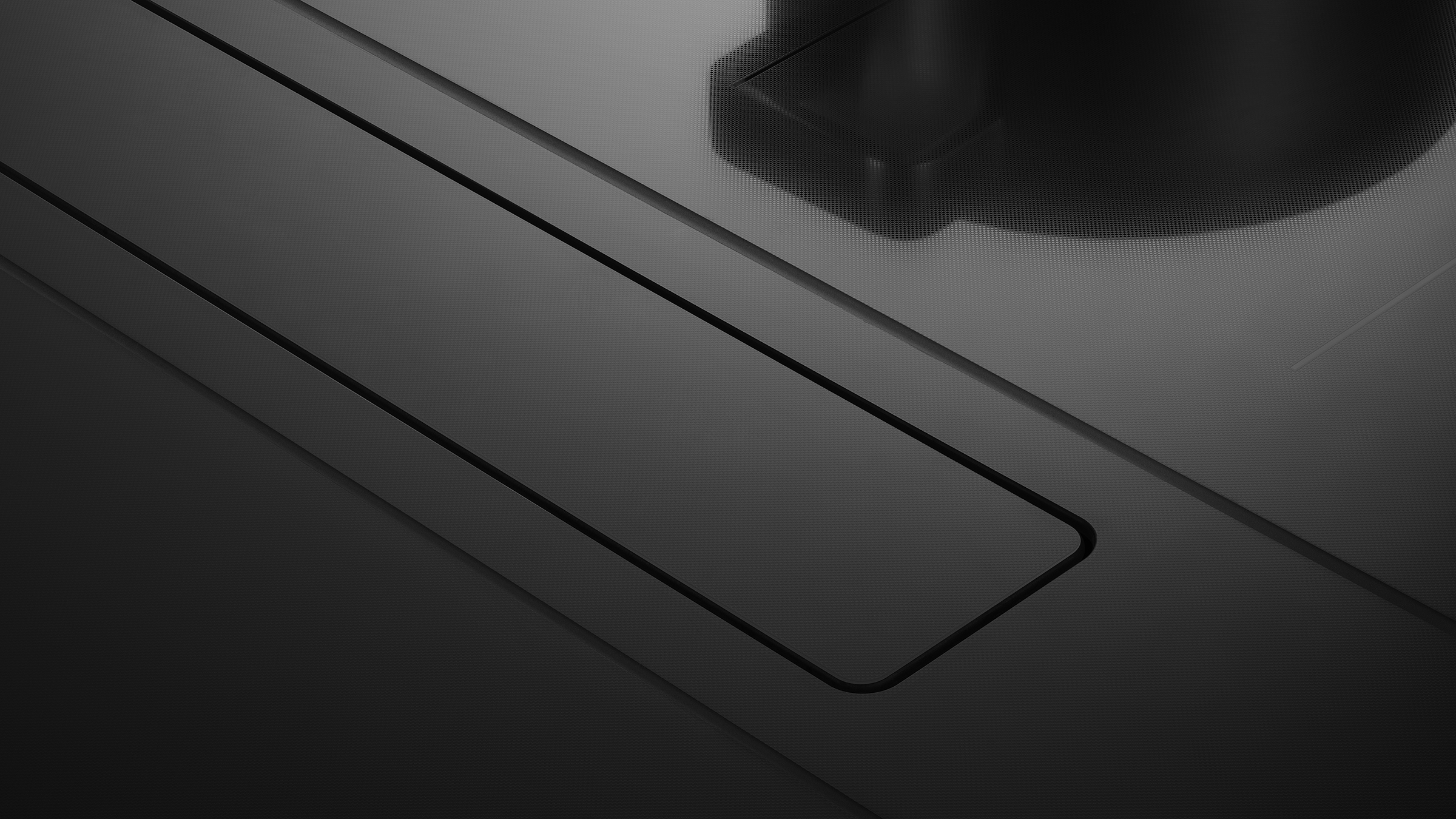

Sleek And Subtle
Sleek And Subtle

Redefine your kitchen's aesthetic with the black glass downdraft ventilation module. Seamlessly integrated into the countertop and alongside cooktop modules, it allows for an open-style, social kitchen design.

Design Versatility
Design Versatility

Ideal for layouts where traditional overhead hoods pose challenges, this ventilation module pairs beautifully with island cooktops and open kitchens. Its ability to retract or hide ensures a cleaner, more open appearance, enhancing your kitchen's functionality and design.

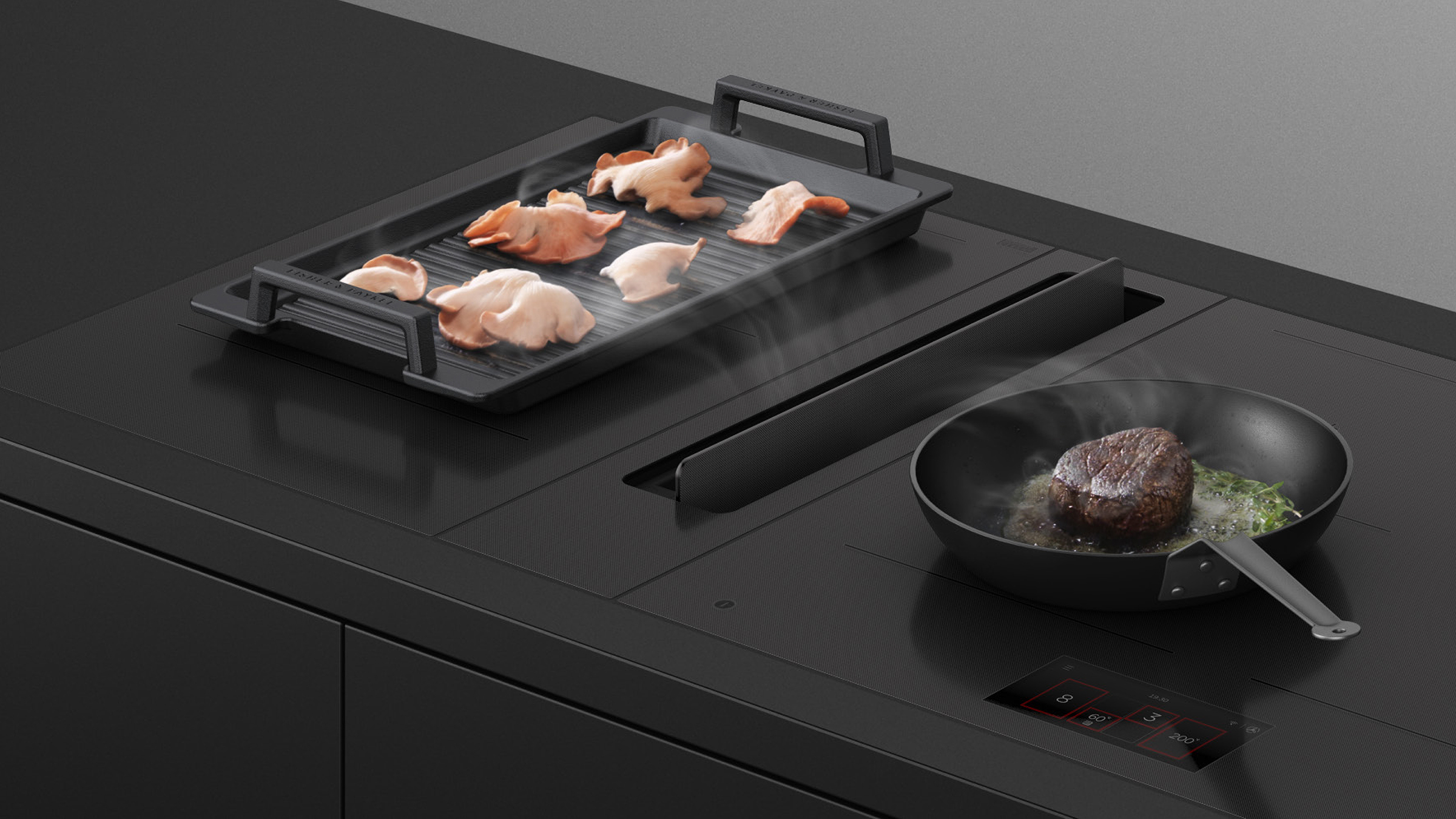

Intuitive Extraction
Intuitive Extraction

Simply open the cover and enjoy convenient extraction with Link Mode. The fan intuitively activates, adjusting its speed according to the power levels of nearby cooktop zones, eliminating the need for manual adjustments. Even after you have finished cooking, the fan remains active to capture any remaining vapors.

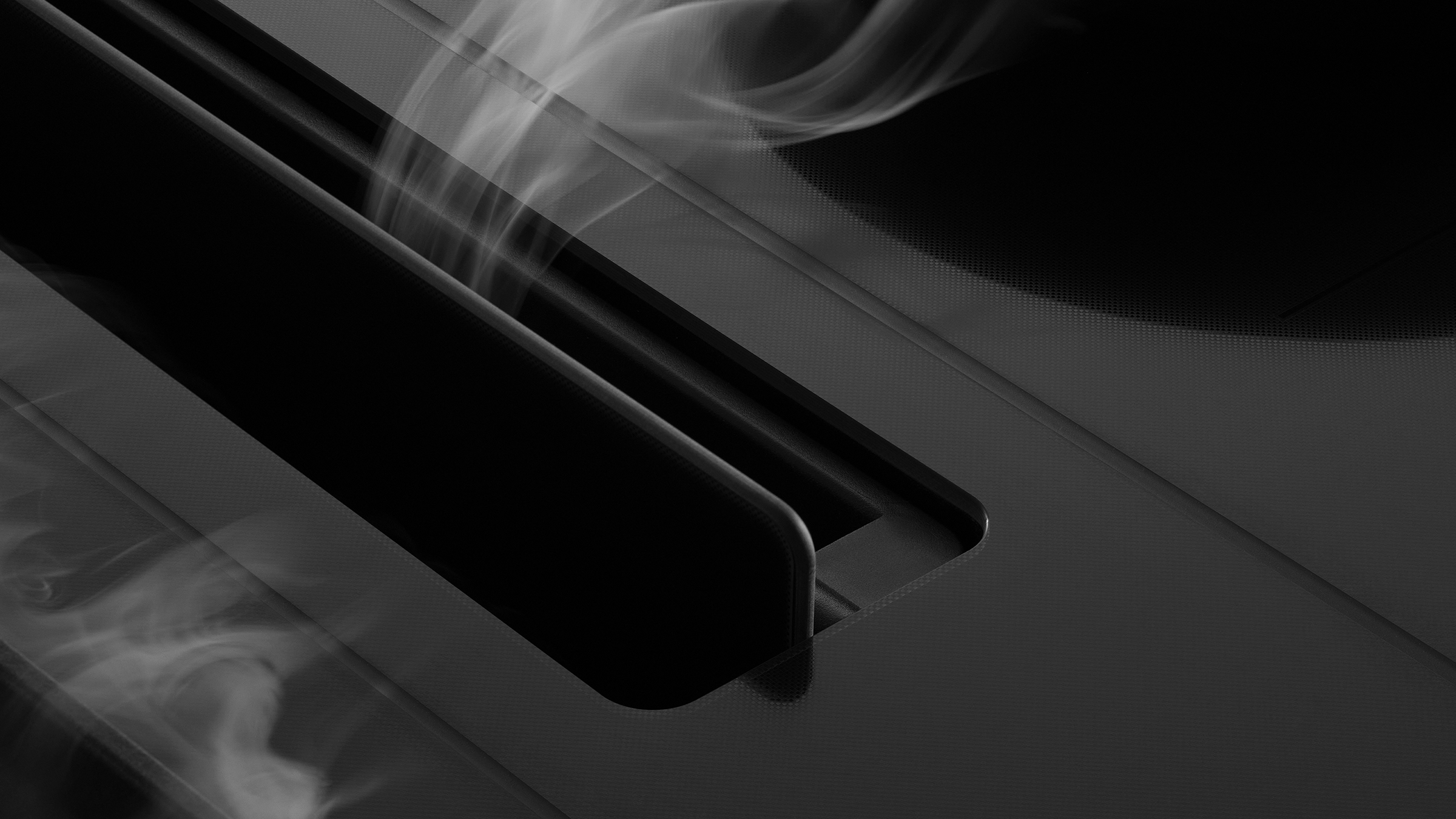

Quiet Efficiency
Quiet Efficiency

The auxiliary ventilation module operates efficiently and discreetly in the background, seamlessly controlled via the primary module touchscreen. With five fan speeds plus a boost function, it quickly removes steam, odors, and grease.

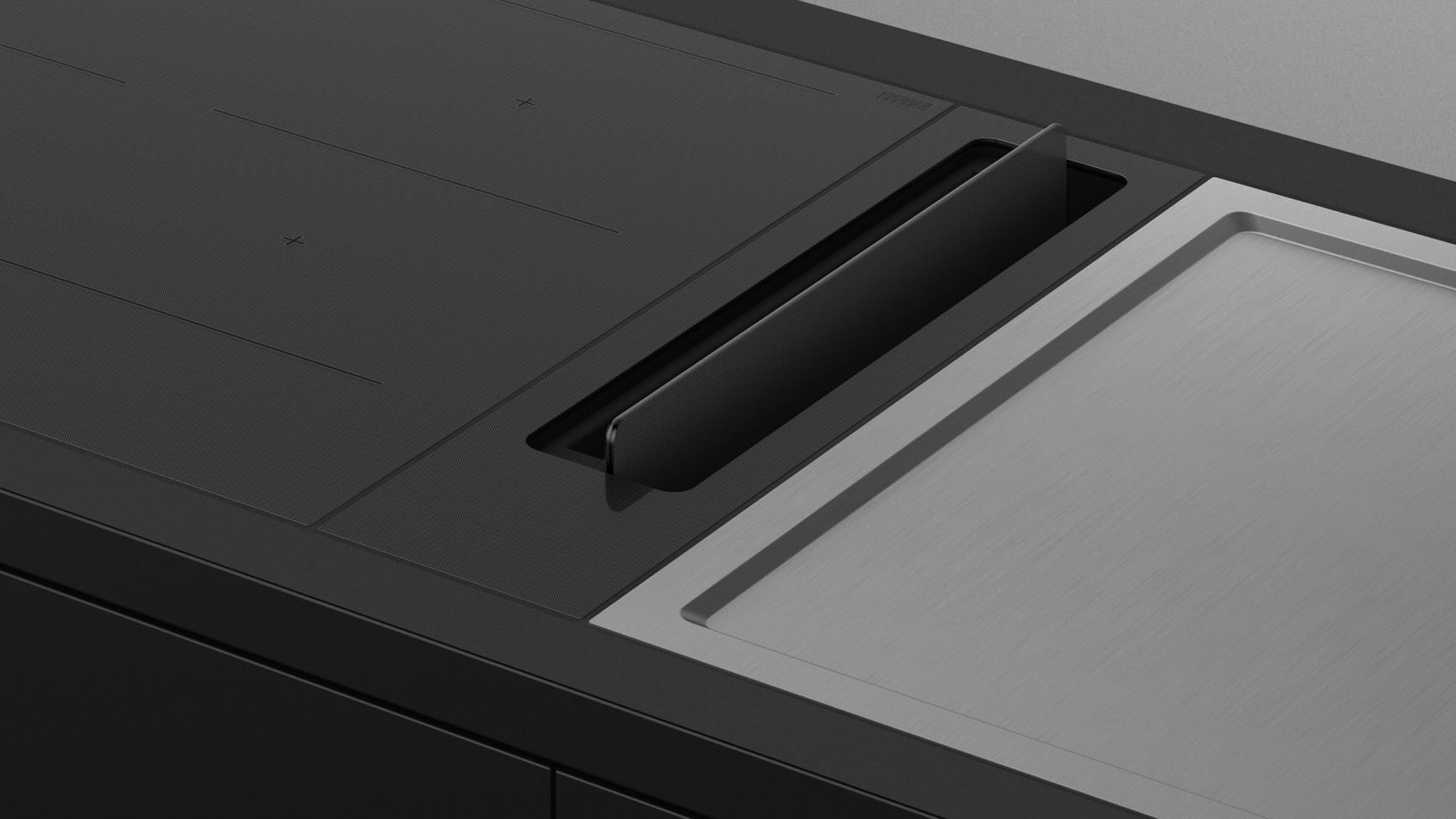

Prolonged Freshness
Prolonged Freshness

A Delayed Off timer ensures that cooking smells continue to be extracted even after you've finished cooking. Additionally, the timer will automatically shut off the ventilation after a preset time, reducing energy waste if you forget to turn it off.

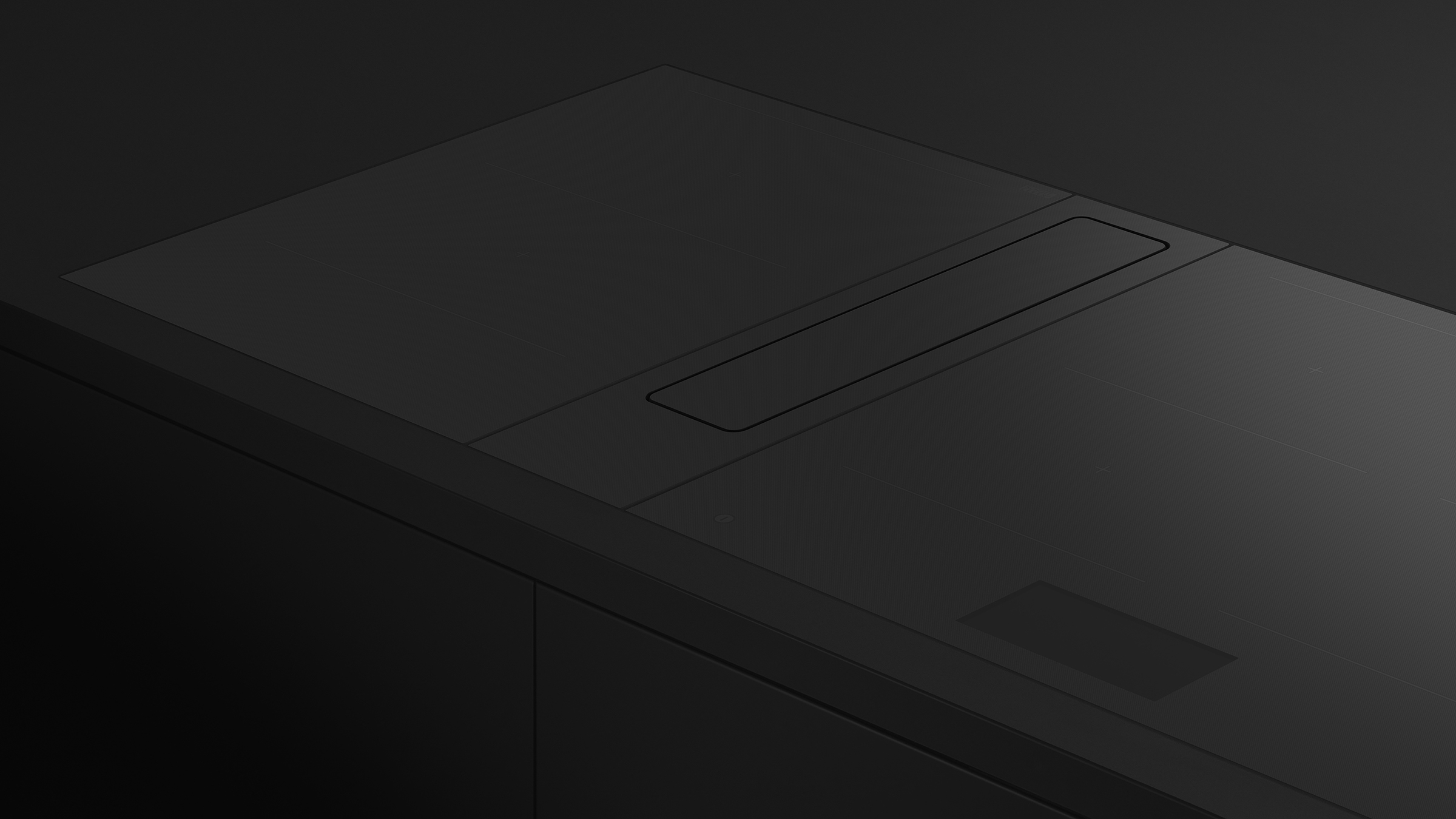

Easy To Clean
Easy To Clean

The nine-layer filter effectively traps grease particles during extraction. Designed for simple removal, the filters are easy to clean and dishwasher safe.

Specifications
Maximum air movement
330CFM
Maximum speed sound rating
9sones
Air outlet size
3.25" x 12" (Included), 2.25" x 12" (Optional)"
Dishwasher safe filters
1
Extraction type
Surface
Fan speeds
5 + Boost
Filter type
Mesh with Stainless Steel filter cover
Number of filters
1
Connection
Flex cord, 3-pin plug
Service
5 A
Supply frequency
60Hz
Supply voltage
120V
Depth
20 7/8"
Height
7 3/8"
Width
5 1/8"
Auto-off/Run-on timer
true
Bluetooth connectivity
true
Modular compatibility
Auxiliary
Modular design
true
Timer function
true
Dimensions — Height
7 3/8"
Dimensions — Width
5 1/8"
Dimensions — Depth
20 7/8"
Product Category
Kitchen Appliances › Range Hoods › Components
Merchandising Category
Range Hoods › Components
